Injection Mold Solutions With Variable Cavity Numbers

Injection mold technology continues to evolve, offering manufacturers greater flexibility and efficiency in producing plastic parts. One important aspect of this technology is the ability to create Various Cavity Numbers Moulds, which plays a significant role in balancing production volume, cost, and product quality. This article explores injection mold solutions with variable cavity numbers, focusing on handle molds and the advantages these configurations provide.

Injection molding is a widely used manufacturing process for producing plastic components by injecting molten material into a mold cavity. The mold itself can contain one or multiple cavities, meaning it can produce one or several parts per injection cycle. Molds with variable cavity numbers allow manufacturers to adapt their tooling to different production demands, which can range from small batch runs to larger-scale manufacturing.

Handle molds, in particular, benefit from this flexibility. Handles are common components in many products, including household appliances, luggage, tools, and furniture. The design and size of handles can vary greatly, but they often require a sturdy structure and smooth finish, making injection molding a suitable method for their production. Depending on the order quantity, manufacturers can choose molds with fewer cavities for smaller runs or molds with more cavities to increase output when needed.

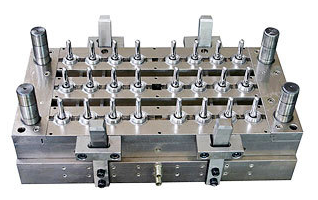

One cavity mold focuses on producing a single part per cycle, which may be ideal for prototyping, product development, or low-volume production. This approach less upfront tooling costs and allows for easier modifications to the mold during the early stages of product design. On the other hand, molds with multiple cavities can produce several identical parts simultaneously, significantly increasing production efficiency. For example, a four-cavity handle mold will produce four handles per injection cycle, helping reduce cycle time and unit cost in higher volume manufacturing.

Variable cavity molds offer the option to customize the mold layout based on the specific needs of a project. Manufacturers can switch between molds with different cavity numbers or even use adjustable molds designed to change the number of active cavities without replacing the entire tooling. This adaptability helps optimize resource use, reduce advance times, and manage costs effectively.

The choice between a single cavity mold and a multi-cavity mold also depends on the complexity of the handle design. More intricate designs with undercuts, textured surfaces, or complex geometries may require additional tooling considerations to maintain part quality across all cavities. Balancing the number of cavities and maintaining consistent mold filling is critical to achieving uniformity and preventing defects such as warping, sink marks, or short shots.

Cooling channels and ejector systems in handle molds must be carefully designed to ensure proper part ejection and dimensional accuracy. As the number of cavities increases, maintaining consistent temperature and pressure throughout the mold becomes more challenging but equally important. Proper mold maintenance and periodic inspection are essential to prolonging the life of multi-cavity molds and sustaining production quality.

In addition to production efficiency, variable cavity molds also influence the overall cost structure of manufacturing. Higher cavity molds typically involve larger and more complex tooling, which requires greater investment upfront. However, when amortized over large production runs, this investment can result in reduced cost per part. Conversely, molds with fewer cavities reduce initial costs but may increase the per-part cost due to longer production times.

Environmental considerations also come into play with injection molding. Multi-cavity molds can reduce material waste by producing more parts per cycle and optimizing cycle times. This efficiency translates to less energy consumption and a smaller carbon footprint per unit produced, aligning with growing sustainability goals in manufacturing.

In summary, injection mold solutions with variable cavity numbers provide manufacturers with the flexibility to meet diverse production requirements, especially when producing components like handles. Whether opting for single or multi-cavity molds, manufacturers must consider production volume, design complexity, cost implications, and quality control to select the lots of suitable approach. Handle molds designed with these factors in mind can deliver consistent, high-quality parts while allowing manufacturers to adapt quickly to market demands. This adaptability makes variable cavity injection molds a practical choice for a wide range of plastic part manufacturing projects.
